UM1600 Melt Blown Line Operation Guide

Table of Contents

This is an operation guide for UM1600 meltblown line.

In this guide, you’ll learn how to start and stop the machine step by step. In the control system, many key parameter values need to be set. So we have prepared a lot of screenshots of the control system containing the key parameter values to help you better use our meltblown machine.

Start the Machine

1) Switch on the power, Press “Temp” , set the temperature of each zone (Fig. 1).

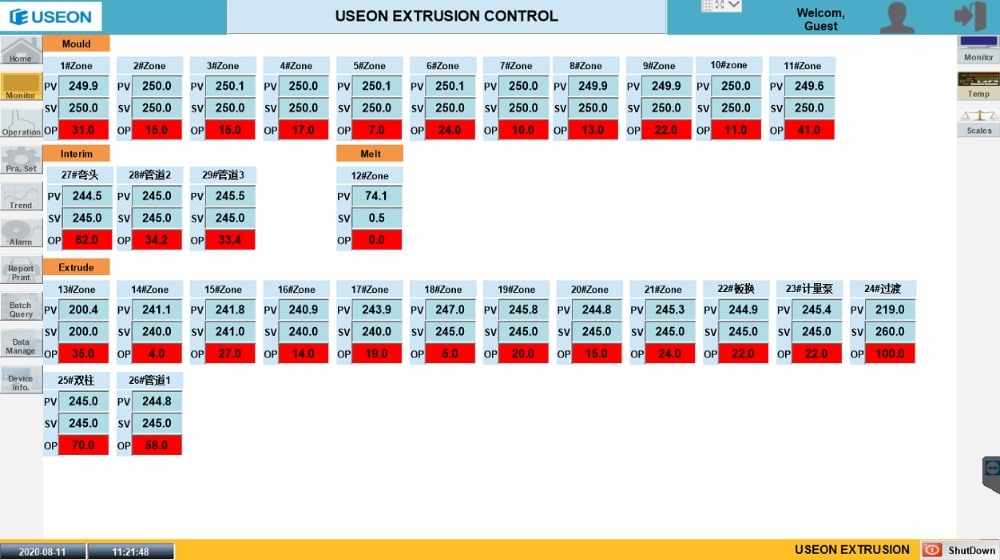

Fig. 1: Temperature setting (SV value)

2) Heating for about 3 hours until each zone arrive the Setting value. Press “Operation”, switch on Water pump and Oil pump (Fig. 2). Check the water pressure more than 0.2Mpa and oil pressure more than 0.3Mpa.

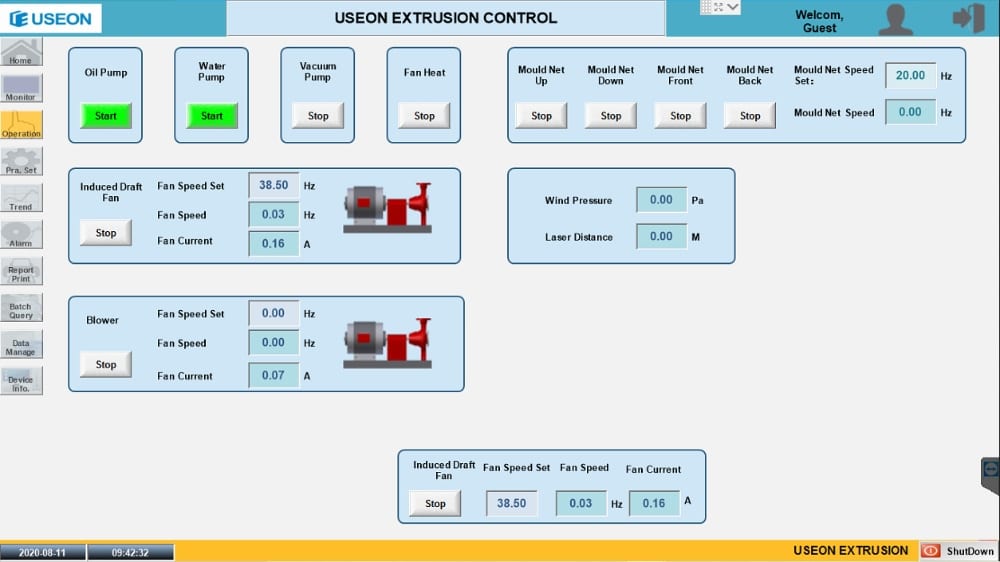

Fig. 2: Water pump and oil pump

3) Start “Blower” with speed 15Hz and switch on the “Fan Heat” with temperature setting 265 ℃ (Fig. 3).

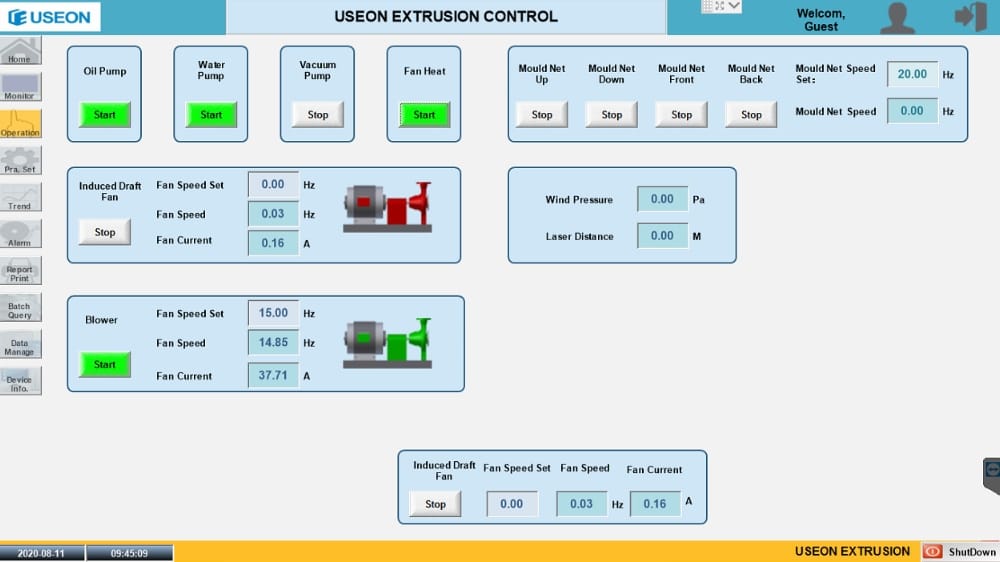

Fig. 3: Blower

4) When the “Hot Air Temp” is above 250℃, start the Melt Pump with speed 6Hz, Feeder Flow Set 30kg/h, and Extruder with speed 200rpm (Fig. 4).

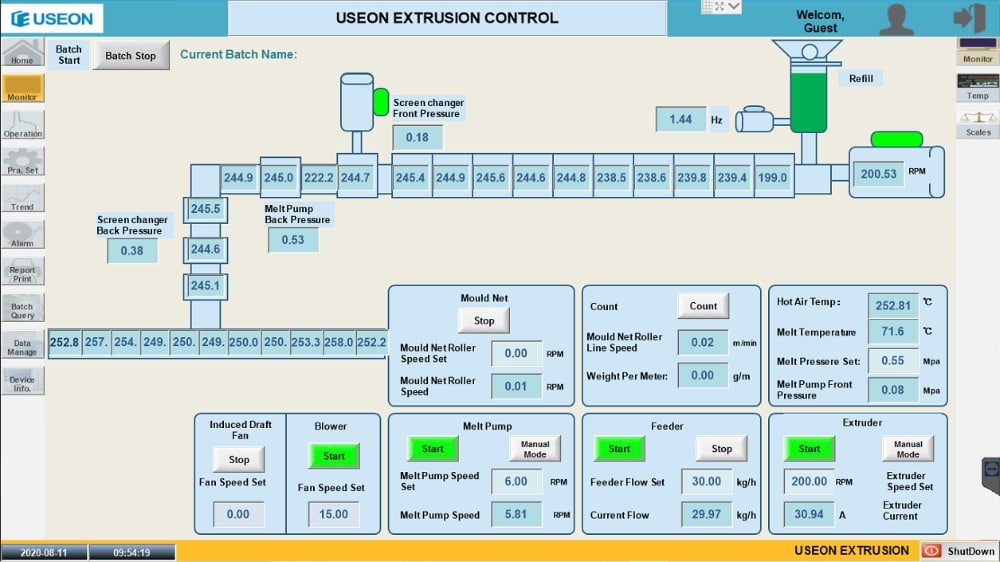

Fig. 4: Speed setting

5) Start the Vacuum Pump.

6) It takes about 15 minutes for the fiber coming out stably. Then change the “Manual Mode” to “Auto Mode”.

7) It takes about 20 minutes for “Melt Pump Front Pressure” changing near by 0.55 Mpa. Then start “Induced Draft Fan” with speed 20 Hz and “Mould Net” with speed 2.5RPM. Press “Count” (Fig. 5).

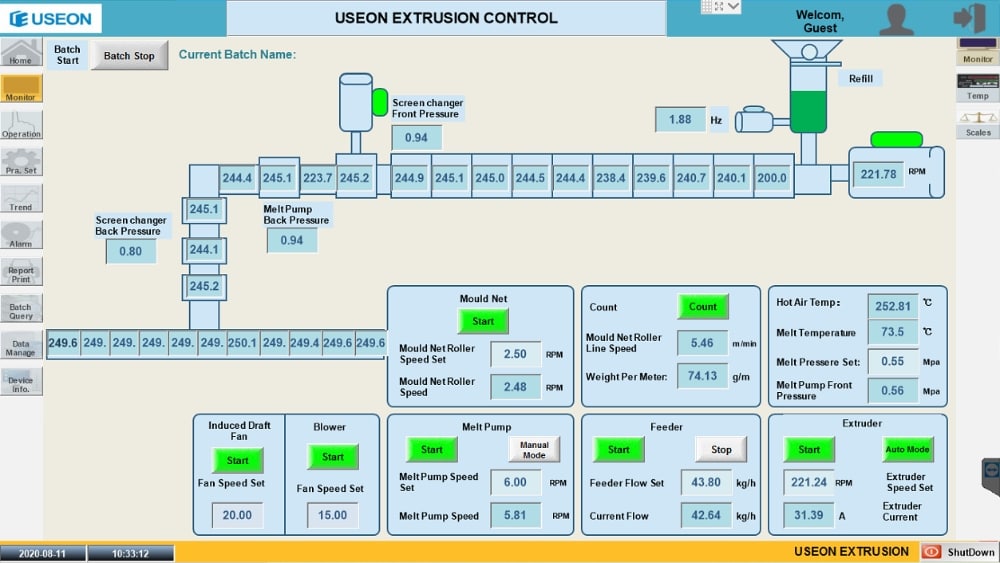

Fig. 5: Start Fan and Mould Net

8) Start the Winder. The speed of rubber roll synchronous with the speed of “Mould Net”.

9) Press “Operation”, then press “Mould Net Front/Back” with speed 20 Hz (Fig. 6).

Make sure the fiber blowing on the center of Mould Net roll.
Two operator take the fabric from Mould Net roll to winder.

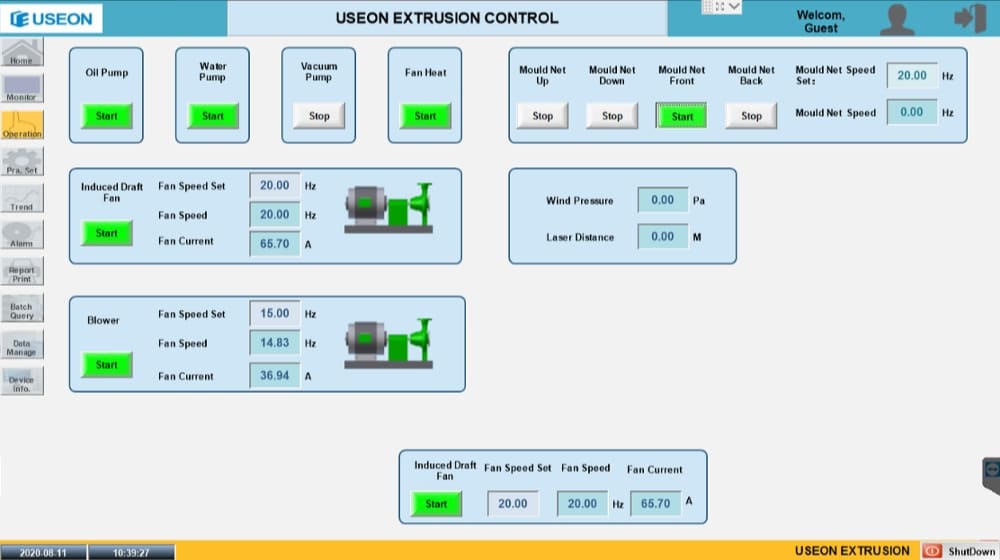

Fig. 6: Moving Mould Net

10) Press “Mould Net Up/Down” with speed 20 Hz to adjust the distance of spinneret plate and Mould Net roll about 175mm.

11) Increase all the speed according the following list:

Speed list

Induced Draft Fan/HzBlower/HzMelt Pump/RPMMould Net/RPMTime
201565
2418763 minutes
262186.53 minutes
3025973 minutes
35289.57.53 minutes
4030108.23 minutes

A) Increase the speed of Melt Pump, the Feeder Current Flow (kg/h) and Extruder speed will increase automatically.

B) Increase the speed of Blower, the fiber will become thinner, the filter efficiency will be higher. You need to increase the speed of Induced Draft Fan before increasing the speed of Blower, otherwise the fiber won’t stick on the Mould netting roll.

C) Increase the speed of Mould Net, the weight per square meter (GSM) will be reduced. You will get the GSM as you want by adjusting the speed of mould net (Fig. 7).

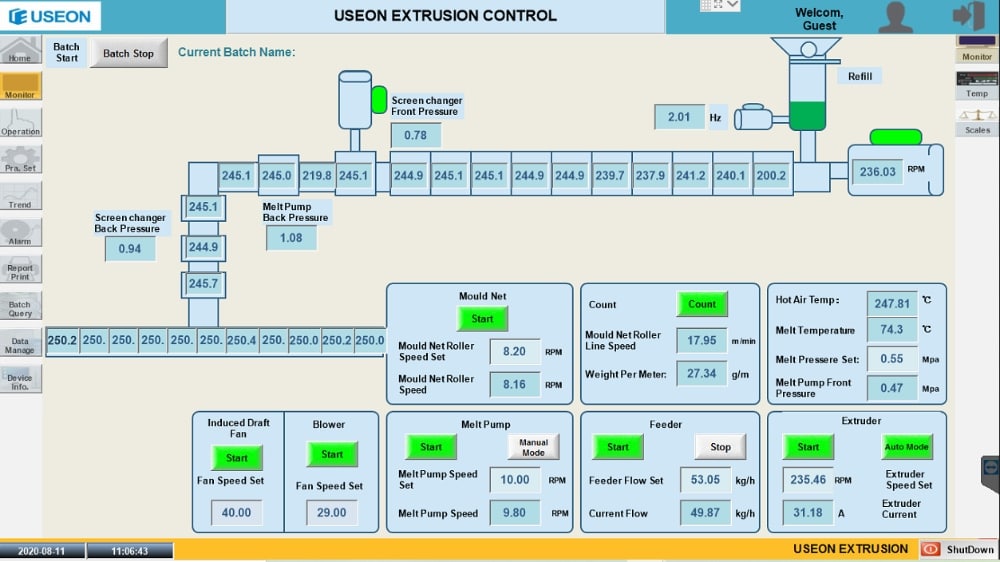

Fig. 7: Speed adjustment

12) Start the Electrostatic with 45Kv voltage. Two wires should be tightened enough.

13) The winder can be automatically changed according the setting length.

Stop the Machine

1) Switch off Electrostatic.

2) Change the “Auto Mode” to “Manual Mode” and stop the feeder (Fig. 8).

Fig. 8: Change mode

3) Reduce all the speed according the following list:

Speed list

Induced Draft Fan/HzBlower
/Hz
Melt Pump
/RPM
Mould Net
/RPM
Extruder /RPMTime
4030108.22502 minutes
3528951503 minutes
3025841503 minutes
302552.5Until fabric break
155Until no fiber coming out
12Until the “Hot Air Temp” below 120℃.

A) Stop the Extruder together with Water Pump, Oil Pump and Vacuum Pump.

B) The fabric will become more and more thin. Cut the fabric before it break.

C) Press “Mould Net Back” with speed 20 Hz. Move the Mould Net backward and collect the fabric into one tank. Stop “Mould Net”, “Induced Draft Fan” and Winder.

D) Keep Blower with speed 15Hz and Melt Pump with speed 5RPM for about 20 minutes. Stop the Melt Pump until no fiber coming out.

E) Stop the “Fan Heat” and keep “Blower” speed 12Hz until the “Hot Air Temp” below 120℃.
